RoHS Shielding Copper Sheet Coil , 99.8% High Purity Rolled Copper Foil

الصين JIMA Copper الشهادات
الصين JIMA Copper الشهادات
ابن دردش الآن

RoHS Shielding Copper Sheet Coil , 99.8% High Purity Rolled Copper Foil

RoHS Shielding Copper Sheet Coil , 99.8% High Purity Rolled Copper Foil
RoHS Shielding Copper Sheet Coil , 99.8% High Purity Rolled Copper Foil

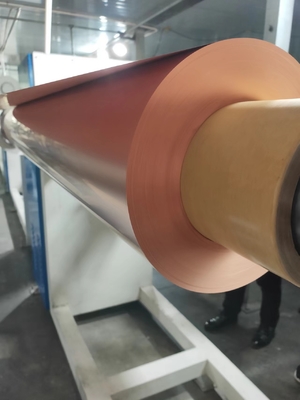

صورة كبيرة :  RoHS Shielding Copper Sheet Coil , 99.8% High Purity Rolled Copper Foil

تفاصيل المنتج:

Place of Origin: china.Shanghai
اسم العلامة التجارية: JIMA
إصدار الشهادات: SGS, ISO,Reach, RoHS
Model Number: EDSHE

شروط الدفع والشحن:

Minimum Order Quantity: 100kg
الأسعار: usd 15-20 /kg
Packaging Details: wooden carton
Delivery Time: 5-15 days
Supply Ability: 1800 Ton per month
مفصلة وصف المنتج
نقاء: فوق 99.8٪ سماكة: 3oz , 105um 105 ميكرون 0.105 مم
لصق او جمع: ≤2 طلب: احباط كوبر التدريع
العرض الأقصى: 1360 مم , 1290 مم , 1380 مم وزن اللفة: 150 كلغ ~ 500 كلغ
تسليط الضوء:

copper foil shielding,adhesive copper foil

,

adhesive copper foil



1360mm 1290mm 1380mm width 3oz thickness Shielding electrodeposited electrolytic ED copper foil



Introduction

max width 1360mm,1290mm,1380mm,standard width is 1290mm,Custom
Thickness 105um,105micron,3oz,0.105mm
Internal Diameter 76mm/152mm,and custom
Length per roll 500m-5000m
Standard IPC 4562 and IPC-TM-650
splice  ≤2
  1.Phenolic resin board
Application: 2.Epoxy board
  3.shielding copper foil, shielding material





  1.the treated foil in gray or red
Characteristics
2.High peel strength
  3.Good etch ability
  4.Excellent adhesion to etching resis

Mill Test Certificate of Shielding ED Electromagnetic Copper Foil

Classification

Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60

1. Standard Width,1295(±1)mm,Max width is 1380mm,May according to the customer request .



​Packing and Mark  :standard export sea wooden box package


FAQ:

Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. what is your standard width and Max width?
A: 1290mm and 1380mm,we accept customization for the width. we can cut it into any size  as per your request.
Q9.Are the package suitable For export ?
Yes , it is suitable for export.
Q11. Can you provide COA?
Yes , we can.
Q13. Can we come to China visit factory ?
Yes ,you can .
Q14. Can you cut into small size?
Yes, we can.as request
Q15: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem pls contact us.
Q16: What's your delivery time ?
A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q17: What's your minimum order quantity?
A: The MOQ is 150 kg.

Keep the dry environment,and is better use it in 30days.
